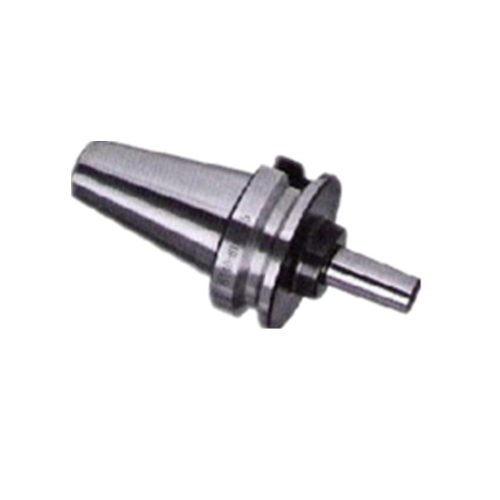

Ad alta precisione bt drill chuck arbor
$1≥1Piece/Pieces
Tipo di pagamento: | L/C,T/T,Paypal,Western Union |
Incoterm: | FOB,CFR,CIF,FCA |
Quantità di ordine minimo: | 1 Piece/Pieces |
Trasporti: | Ocean,Land,Air |
Porta: | Qingdao,Shanghai,Beijing |
Modello: BT30,BT40,BT50
marchio: Qfmh
Luogo D'origine: Cina
Stato: Nuovo
Servizio Fuori Garanzia: Supporto online
Dove Fornire Servizi Locali (in Quali Paesi Sono Presenti Punti Di Assistenza All'estero): tacchino
Ubicazione Dello Showroom (in Quali Paesi Sono Presenti Sale Campione All'estero): tacchino
Video Ispezione In Fabbrica: Fornito
Rapporto Di Prova Meccanica: Fornito
Tipo Di Marketing: Prodotto ordinario
Applicazione: FRESA
Periodo Di Garanzia: 6 mesi
Componenti Principali: Cuscinetto, Il motore, Pompa, Ingranaggio
Type: Cutter
Boring Tool Type: Fine Boring Tool
Turning Tools Type: Circular Cutting Tool Surface
Work Type: Cut Off
Cutting Process: Milling Cutter
Structure: Other
Style: Universal Tool
Standards: P
Material: High-speed Steel
Milling Cutter Type: Milling
Unità vendibili | : | Piece/Pieces |
Tipo pacchetto | : | cartone |
Esempio immagine | : | |
Scaricare | : |
Bt Drill Chuck Arbor Macelling Macut Struting Porta di un utensile, l'asta di collegamento viene utilizzata principalmente per la perforazione e la macinazione utilizzata in Drill Chuck, BT Drill Chuck Arbor generalmente utilizzato per tornio, macchina da fresatrice, macchina da cambio di lavorazione ecc. Bt Drill Chuck ARBOR ARBOR ARBING USA La struttura in lega acciaio, la durezza ha raggiunto i 58-62 gradi, la velocità fino a 12000 giri / min
Specifiche
1.BT Drill Chuck Arbor Modello: BT30/40/50
2.Bt Drill Chuck Arbor Material: 20crmnti
3.BT Drill Chuck Arbor Dired: HRC58-62
4.Run Out è inferiore a 0,005 mm
5.BT Drill Chuck Arbor Tool Holdrs Organizzazione di copertura BT30/40/50, Cat30/40/50, Din69871A30,40,50
6. Tre tipi di raffreddamento A: senza alimentazione di raffreddamento AD: alimentazione di raffreddamento centrale AD/B: fornitura di raffreddamento centrale e con liquido di raffreddamento inenale attraverso il colletto
7. Porta utensile senza pedaggio disponibile G6.3 = 12000 giri / min g2.5 = 20000 giri / min
8.Bt Drill Chuck Arbor Adatto di fronte a un taglierina: 13mm-50mm
Model No. BT-NO.s-L1 |
L2 |
L1 |
D |
D1 |
Drawbar thread |
Wt(kg) |
BT30-J1-45 |
16.669 |
110 |
9.754 |
31.75 |
M12 |
0.60 |
BT30-J2-45 |
22.225 |
115.6 |
14.199 |
31.75 |
M12 |
0.70 |
BT30-J3-45 |
30.956 |
124.4 |
20.599 |
31.75 |
M12 |
0.80 |
BT30-J6-45 |
25.4 |
118.8 |
17.170 |
31.75 |
M12 |
0.75 |
BT30-J33-45 |
25.4 |
118.8 |
15.850 |
31.75 |
M12 |
0.75 |
BT30-B10-45 |
14.5 |
107.9 |
10.094 |
31.75 |
M12 |
0.60 |
BT30-B12-45 |
18.5 |
111.9 |
12.065 |
31.75 |
M12 |
0.60 |
BT30-B16-45 |
24 |
117.4 |
15.733 |
31.75 |
M12 |
0.70 |
BT30-B18-45 |
32 |
125.4 |
17.780 |
31.75 |
M12 |
0.82 |
BT40-J1-45 |
16.669 |
127.1 |
9.754 |
44.45 |
M16 |
1.15 |
BT40-J2-45 |
22.225 |
132.6 |
14.199 |
44.45 |
M16 |
1.25 |
BT40-J2S-45 |
19.05 |
129.4 |
13.940 |
44.45 |
M16 |
1.20 |
BT40-J3-45 |
30.956 |
141.4 |
20.599 |
44.45 |
M16 |
1.45 |
BT40-J4-45 |
42.069 |
152.5 |
28.550 |
44.45 |
M16 |
1.55 |
BT40-J5-45 |
47.625 |
158 |
35.890 |
44.45 |
M16 |
1.60 |
BT40-J6-45 |
25.4 |
135.8 |
17.170 |
44.45 |
M16 |
1.30 |
BT40-J33-45 |
25.4 |
135.8 |
15.850 |
44.45 |
M16 |
1.30 |
BT40-B10-45 |
14.5 |
124.9 |
10.094 |
44.45 |
M16 |
1.40 |
BT40-B10-120 |
14.5 |
199.9 |
10.094 |
44.45 |
M16 |
1.76 |
BT40-B12-45 |
18.5 |
128.9 |
12.065 |
44.45 |
M16 |
1.34 |
BT40-B16-32 |
24 |
121.4 |
15.733 |
44.45 |
M16 |
1.40 |
BT40-B16-45 |
24 |
134.4 |
15.733 |
44.45 |
M16 |
1.45 |
BT40-B16-75 |
24 |
164.4 |
15.733 |
44.45 |
M16 |
1.55 |
BT40-B16-90 |
24 |
179.4 |
15.733 |
44.45 |
M16 |
1.40 |
BT40-B18-45 |
32 |
142.4 |
17.780 |
44.45 |
M16 |
1.70 |
BT40-B18-75 |
32 |
172.4 |
17.780 |
44.45 |
M16 |
1.76 |
BT50-J1-45 |
16.669 |
163.5 |
9.754 |
69.85 |
M24 |
3.60 |
BT50-J2-45 |
22.225 |
169 |
14.199 |
69.85 |
M24 |
3.95 |
BT50-J2S-45 |
19.05 |
165.9 |
13.940 |
69.85 |
M24 |
3.90 |
BT50-J3-45 |
30.956 |
177.8 |
20.599 |
69.85 |
M24 |
3.70 |
BT50-J4-45 |
42.069 |
188.9 |
28.550 |
69.85 |
M24 |
3.75 |
BT50-J5-45 |
47.625 |
194.4 |
35.890 |
69.85 |
M24 |
3.80 |
BT50-J6-45 |
25.4 |
172.2 |
17.170 |
69.85 |
M24 |
4.00 |
BT50-J33-45 |
25.4 |
172.2 |
15.850 |
69.85 |
M24 |
4.00 |
BT50-B10-45 |
14.5 |
161.3 |
10.094 |
69.85 |
M24 |
3.60 |
BT50-B10-100 |
14.5 |
216.3 |
10.094 |
69.85 |
M24 |
3.80 |
BT50-B12-45 |
18.5 |
165.3 |
12.065 |
69.85 |
M24 |
3.60 |
BT50-B16-45 |
24 |
170.8 |
15.733 |
69.85 |
M24 |
3.65 |
BT50-B16-60 |
24 |
185.8 |
15.733 |
69.85 |
M24 |
3.70 |
BT50-B16-75 |
24 |
200.8 |
15.733 |
69.85 |
M24 |
3.74 |
BT50-B16-90 |
24 |
215.8 |
15.733 |
69.85 |
M24 |
3.78 |
BT50-B18-45 |
32 |
178.8 |
17.780 |
69.85 |
M24 |
3.70 |
